Prices incl. VAT plus shipping costs
On stock, delivery time appr. 2 - 3 workdays
- Order number: 100068
- Shipping weight: 0,21 kg
PCB MK2b R1 Dual Power Heat Bed PCB Heat Bed MK2b usable with 12V and 24V Dimensions:... more
Product information "PCB MK2B R1 Dual Power Heatbed"

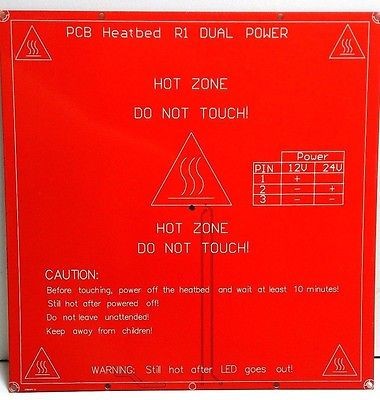

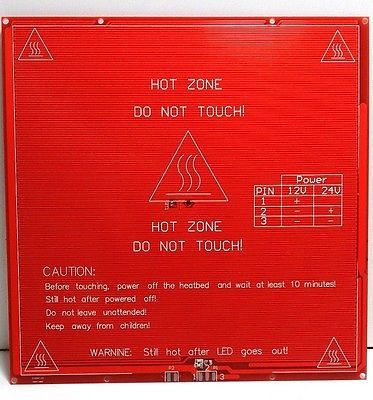

PCB MK2b R1 Dual Power Heat Bed
- PCB Heat Bed MK2b usable with 12V and 24V
- Dimensions: 214mm x 214mm
- SMD Leds presoldered for control
- recommended permanent heating 120°C
- Powersupply 12V and 24V selectable by connectors
- based on the MK2A design of Josef Prusa
- 5 holes 3mm for 3 or 4 point mounting
- The NTC Thermistor is already soldered on the board!
- NTC type: 100k, Beta = 3950
