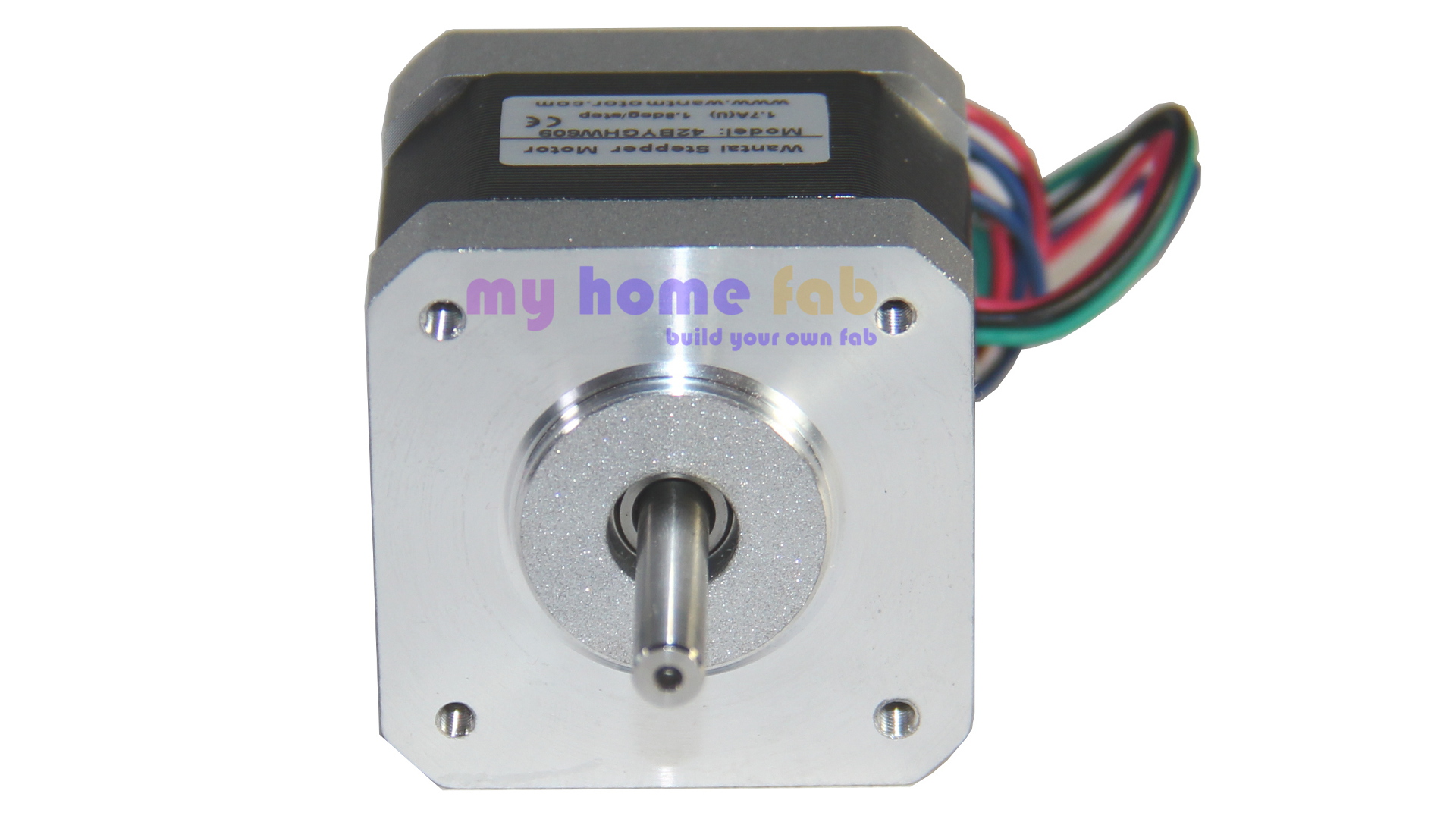

Anschluss Schema 42BYGHW609
| Anschluss | Farbe |
|---|---|
| Spule 1A | Grün |
| Spule 1B | Schwarz |
| Spule 2A | Rot |
| Spule 2B | Blau |
Technische Daten 42BYGHW609
| Merkmal | Wert |
|---|---|
| Schrittwinkel | 1,8° |
| Schritte pro Umdrehung | 200 |
| Nennsstrom | 1,7A/Phase |
| Nennspannung | 3,7V |
| Haltemoment | 4000g*cm |
| Rastmoment | 220g*cm |
| Rotorträgheit | 54g*cm2 |
| Spulenwiderstand | 2,0 Ohm/Phase |
| Gewicht | 240g |
| Motorlänge (L Max) | 40mm |
| Wellendurchmesser | 5mm |

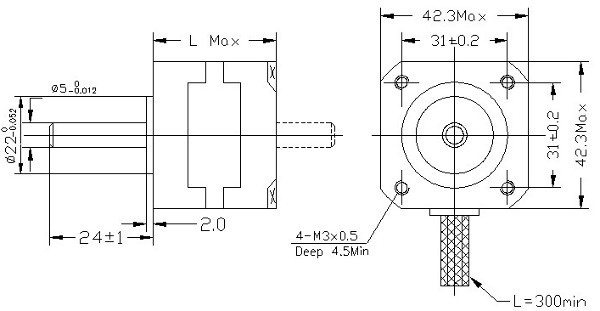

Abmessungen 42BYGHW609
